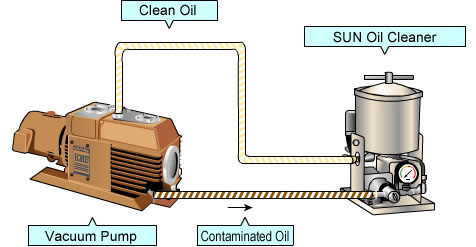

SUN Oil Cleaner System Construction |
|
 |
Benefits |
 |
Oil Replacement Frequency Reduced |
 |
Vacuum Pump Longevity Increased |
 |
Rise in Productivity and Reduction of Maintenance Services. |
|
|
|
|
Structure |
|
 |
|
| SUN Element (for use with SUN Oil Cleaner) |
|
 |
The SUN Element is designed to clean vacuum pump oil. It is comprised of engineered ion exchange polymer fibers that simultaneously remove particles, water and acids mixed in the vacuum pump oil.
(Emulsified oil can also be cleaned) |
 |
 |
|
|
|
SUN Element Specifications |
|
|
| Models |
SUN
Element |
[Z]
type |
[J]
type |
[K]
type |
[W]
type |
[HJ]
type
|
[HJD]
type
|
|
| Element Density |
High |
Standard |
Low |
Standard |
Standard |
Standard |
| Main Functions: |
Acid and
particle
Removal |
Particle
and water Removal |
Dirt Removal |
Water Adsorption |
Acid and Particle Removal |
Water and Particle Removal |
| Size (mm) |
D180
×
H115 |
D180
×
H115 |
D180
×
H115 |
D180
×
H115 |
D180
×
H260 |
D180
×
H250 |
| Oil Cleaner Compatibility |
SUN-100B, SUN-100BM |
SUN-230, SUN-490 |
|
|
| SUN Element Features |
|
|
Removes Fine Particles. |
|
Removes Acid Generates |
|
Removes Water |
 |
Neutralizes Acids |
|
|
| Applications |
|
| Compatible Oils: |
Vacuum Pump Oil, Hydraulic Oil, Lubricant Oil,
Fluorine Oil, Synthetic Oil, Insulation Oil, Hydrocarbon Liquid, etc. |
|
| Applicable Devices: |
Semiconductor Production (Implanter, Metal
Etching) Vacuum Brazing, Deposition, Distillaion, Vacuum Drying, Heat Treatment,
Vacuum Impregnating, Vacuum Furnace, other Vacuum Machines and industrial
machines. |
|
|
|
|
