TOP >> Product Information [Outline] >> Sun Aqua Cleaner [Outline]

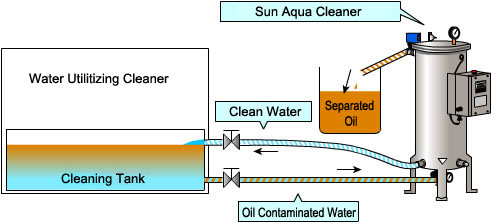

 How does the SUN Aqua Cleaner benefit water focused machines?
The Sun Aqua Cleaner separates oil from water in water type and quasi-water type detergent liquids. It can effectively separate and discharge fine oil particles scattered throughout the detergent liquid. The lipophilic fibers contained in the Element serve to form an oil film within the Element that taps and separates fine oil contents.
Left/SA-50
Right/SA-100
 [Water Type]   Oil-Water Separator: SUN Aqua Cleaner
Benefits
High level of cleanliness in the detergent liquid (maintaining its effectiveness)
Avoid reattachment of oil content to the washed object
Increases the longevity of the detergent liquid.
Structure
 Aqua Cleaner Element (SUN Aqua Cleaner)
アクアセパレータ―エレメント The Aqua Cleaner Element is an oil-water separator element that is comprised of a special oil-philic non-woven fiber with the ability to adsorb oil. The atoms of this fiber have a very strong affinity and are designed to break down micelle solutions to form oil films inside the element.
Picture:  T-100
SUN Aqua Separator Element Models
  Aqua Separator Elements
Applied Model: T-10 T-100 T-200 T-06 T-15
Applied Housing: SA-50
(3D1)
SA-100
(5D1)
SA-200
(5D2)
SA-06A SA-15A
Flow Rate:
(liters/min)
3 or less 10 or less 20 or less 6 or less 15 or less
Separation Type: Oil Film Oil Film Oil Film Oil Film Oil Film
Material SUS304 SUS304 SUS304 SUS304 SUS304
Size (mm) D70×H250 D180×H250 D180×H500 D80×H250 D150×H360
 Aqua Separator Element Features
Separates fine oil contents.
High durability.
High performance and greatly extended longevity.
