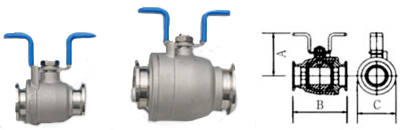

>> Outline/Products TOP >> Product Information [Outline] >> Flat Ball Valve [Outline/Products] 　Products Flat Ball Valve The Flat Ball Valve is designed from KF Flange and has the same diameter and bore size. It is compact “Full Bore” type vacuum ball valve, which means low conductance loss and high resistance to clogging. Features The Joint bore and ball inside are almost of the same diameter. Compact size（Length:70mm/Length: 100mm） Highly resistant to reactive generates. Specifications ■Exterior Material: SUS304 ■Interior Material: Teflon   Model Type A B C FB-25 NW25 70 70 46 FB-40 NW40 80 100 70 PAGE TOP
