TOP >> Product Information [Outline] >> General Industry Oil-Water Separator [Features]
　[Oil Type] Oil-Water Separator: Sun Separator Cleaner
Benefits
Low pressure loss; high economic benefit
Long lifespan
Implementation of an excellent oil-water separator
Maintains a high level of oil cleanliness

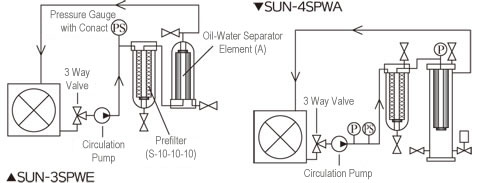

Structure
　Oil-Water Separator Element
The Separator Element removes any water from oil by utilizing the engineered water film type fibers. A water film is formed inside the Element that traps any water contained in the oils as it passes through. The water then becomes assimilated and separated.
[Concept] [Dirt Removal Element] [Oil Water Separator Element]
Pre-filter
(S-1-10-10)		 Separator Element
(C Type)
　Comparison
  SUN Separator Element Conventional
Element

Construction
Separation
Principle		 Assimilate, saturate and separate
water with a water film.		 Push water from the center of the filter
to the outside through the mesh
Mesh Size 200 - 300μm Several Microns (3 - 5μm)
Separation Complete removal of all water particles

The mesh size limits the rate the water molecules are removed

Industry Vacuum Pump Oil Gasoline, Kerosene

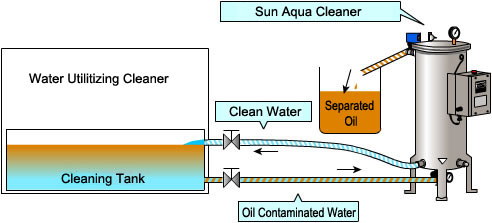

　[Water Type]   Oil-Water Separator: SUN Aqua Cleaner
Benefits
High level of cleanliness in the detergent liquid (maintaining its effectiveness)
Avoid reattachment of oil content to the washed object
Increases the longevity of the detergent liquid.
Structure
　Aqua Cleaner Element (SUN Aqua Cleaner)
アクアセパレータ―エレメント The Aqua Cleaner Element is an oil-water separator element that is comprised of a special oil-philic non-woven fiber with the ability to adsorb oil. The atoms of this fiber have a very strong affinity and are designed to break down micelle solutions to form oil films inside the element.
Picture:  T-100
SUN Aqua Separator Element Models
  Aqua Separator Elements
Applied Model: T-10 T-100 T-200 T-06 T-15
Applied Housing: SA-50
(3D1)		 SA-100
(5D1)		 SA-200
(5D2)		 SA-06A SA-15A
Flow Rate:
(liters/min)		 3 or less 10 or less 20 or less 6 or less 15 or less
Separation Type: Oil Film Oil Film Oil Film Oil Film Oil Film
Material SUS304 SUS304 SUS304 SUS304 SUS304
Size (mm) D70×H250 D180×H250 D180×H500 D80×H250 D150×H360
　Aqua Separator Element Features
Separates fine oil contents.
High durability.
High performance and greatly extended longevity.
